Boat Specifications

Owners Version Spec

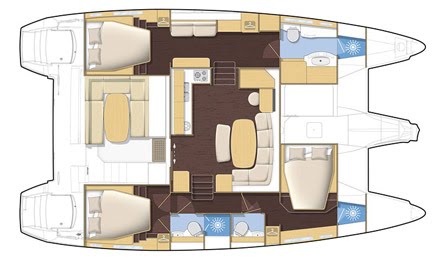

OWNER’S VERSION – 3 cabins, 3 heads, 3 separate showers

SPECIFICATIONS

LOA ……………………………………………………………………………….. 12.61 m (41’4’’)
LWL ……………………………………………………………………………….. 12.30 m (40’4’’) BOA………………………………………………………………………………….7.50 m (24’7’’)
Mast Height Over Water ………………………………………………………..20.73 m (64’9’’)
Draft ……………………………………………………………………………….. 1.26 m (4’2’’)
Light displacement (EEC) …………………………………………………….. 12.17 t (26,835 Lbs)
Square top mainsail…………………………………………………………….. 69.5 m2 (748 sq ft)
Furling genoa ……………………………………………………………………. 35.9 m2 (386 sq ft)
Water ……………………………………………………………………………… 3 x 175 l =525l
Fuel ……………………………………………………………………………….. 2 x 300 l /=600l
Engine size ……………………………………………………………………….2 x 75Hp
Architects ……………………………………………………………………….. Marc Van Peteghem & Vincent Lauriot Prévost (VPLP)
EC Certification ……………………………………………………… A : 11 ; B : 13 ; C : 18 ; D : 20

CONSTRUCTION

  • Polyester and high quality anti-osmotic resin FRP construction
  • Infused balsa core composite hulls – white gel coat
  • Infused solid glass FRP under waterline

    Bridge deck and deck in balsa sandwich.

  • Vacuum bagged and infused with high quality anti osmotic resin and polyester resin
  • Solid or felt core composite interior FRP hull & roof liners
  • FRP reinforced marine ply bulkheads; glassed or bonded to hull

SAILS

  • Full batten full roach mainsail, 66,4 m2/ 714 sq ft, Lagoon logo
  • Furling genoa with UV protective band, 35,9 m2/ 386 sq ft

STANDING RIGGING

  • Anodised aluminum deck-stepped mast (18 m /59’1”)
  • Single spreaders
  • Anodized aluminum boom
  • Shroud deck chainplates
  • Forestay chainplate on composite central rostrum


RUNNING RIGGING

  • Double purchase main halyard
  • Genoa halyard
  • Double purchase mainsheet led back to helmstation,
  • mainsheet traveler and car on hard top bimini
  • 2 Genoa sheets
  • 2 Genoa sheet tracks
  • 3 Winches at helm station:
    • 1 Electric Winch 44.2STE for:
      • Port mainsheet traveller line
      • Starboard mainsheet traveller line
      • Port genoa sheet
    • 1 Electric Winch 44.2STE for:
      • Main halyard
      • Genoa halyard
      • Boom topping lift
    • 1 Electric Winch 44.2STE for:
      • Main sheet
      • Reef 1 (automatic)
      • Reef 2 (automatic)
      • Reef 3 (conventional)
      • Starboard genoa sheet – Genoa furling line
  • 3 reefing lines (2 auto and 1 conventional)
  • Line jammers
  • 1 Fixed mainsail clew padeye
  • 1 Genoa furler line
  • 2 Adjustable lazy jacks
  • 2 Winch handles with holder

DECK HARDWARE

  • 8 Mooring cleats
  • 1 vertical electric windlass 1000 W with 10 mm gipsyBow safety nets on each side of the composite central rostrum
  • S/s stern pulpits with horseshoe buoy mount and flag holder
  • S/s bow pulpits and forward lifelines • S/s double lifelines
  • S/s coachouse handrails
  • Lifeline gates


COCKPIT

  • Cockpit useable as outdoor salon, accessible via a stern walkway connecting both transoms
  • Hard top bimini with integral lighting
  • Self bailing cockpit with teak grate
  • Helm station on starboard roof bulkhead including: motor throttle controls, motor control panels, steering compass, area for electronic instruments installation, leather covered steering wheel with brake, double helm seat with cushions, access steps from cockpit with s/s handrail and 2 line storage compartments
  • Steering system: cable steering, composite
  • shaft rudders, emergency tiller
  • U-shape seating area with generator compartment
  • Varnished wooden cockpit table, interchangeable with salon coffee table
  • 1 aft cockpit seat locker
  • 1 port cockpit propane locker
  • 2 large storages area under steering station
  • 2 cockpit storage shelves

FOREDECK

  • Forward seating area
  • Covered chain locker
  • Port & starboard storage lockers
  • 1 large central storage locker
  • 1 additional large locker on port side
  • Forward bow lockers with locking deck hatches and access ladders
  • • Anchor roller on central composite rostrum


TRANSOMS

  • Starboard side hot and cold deck shower • Starboard side s/s swim ladder
  • Rubber transom rubrails
  • Access to engine room


DECORATION

  • Hull water line and boot stripe grey
  • Adhesive Lagoon logos on roof sides
  • Model name aft on each hull and on aft beam


ENGINE COMPARTMENTS

  • Access from opening hatch in transom
  • 2 x 75 hp sail drive diesel
  • Motor shut off at helm station
  • Double motor throttle control at helm station • Motor compartments sound insulation
  • Motor compartments air intakes on aft crossbeam
  • 12V Air exhaust fans
  • 1 engine start battery 12V – 110 Ah (per engine)


PLUMBING

  • 3 X 175 L water tanks
  • Fresh water circuit and 12V pump
  • Hot water circuit with 40 L water heater (AC + Engine)
  • Diesel capacity: 2 X 300 L under starboard and port aft berth
  • 2 x 12V automatic bilge pumps
  • 2 x 12V manually activated bilge pumps • 2 x Manual bilge pumps
  • Fuel filter with water separator
  • Sea water filter
  • Exhausts with wet mufflers


ELECTRICS

  • Backlit 12 V Electrical panel
  • LCD display with: voltmeter, Ah-meter, water level gauge, diesel level gauge, low level alarm for diesel and water tanks
  • 2 Start batteries: 12V – 110 Ah
  • 4 House batteries: 12V – 140 Ah • LED lights
page5image29984
page5image30256

INTERIOR LAYOUT

  • General
    • INTERIOR WOOD IN ALPI TEAK WITH OAK FLOOR
    • Stainless steel handrails covered with leather
    • Mattress and upholstery
      • Cabins mattresses: marine mattresses made of multi layer alveolar foam with several densities. Mattresses designed to improve comfort for a deeper sleep (thickness: 120mm/5’’)
      • Mattresses treatment: anti microbial, anti bacterial, non allergenic, anti dust mite
    • Synthetic fabrics adapted to marine environment:
      • U.V. resistant
      • water repellent, with anti stain treatment
      • washable (40°C)
    • Fabric-covered wooden ceiling panels or fibreglass liners in cabins and wash rooms
    • Fabric hull liner in cabins
    • FRP liner in main salon
    • Curtains in cabins and on forward windows in salon
  • Salon
    • Large panoramic view salon with sliding door and lock
    • Standing headroom: 2.05m/6’9
    • 12V salon overhead lights
    • Seating for 8 people
    • Varnished wood coffee table that can be swapped with large wooden cockpit table. 1 set of tall aluminium legs and 1 set of short aluminium legs
    • Storage under settee
    • 2 opening hatches in forward vertical coachouse windows
  • Chart table (on the port side on the salon, facing forward)
  • Standing headroom: 1.95m/6’5”
  • 12V overhead light
  • Panel for electronic equipment
  • Swivelling stool that can be used as additional seat at the dining table
  • Hinged chart table lid
  • Chart 12V reading light

  • Galley in salon communicating directly with cockpit via a sliding bay window
  • Standing headroom: 2 m/6’7”
  • 12V overhead lights
  • Dark grey laminate countertop with wooden fiddles
  • 3 burner stove
  • Separate oven with grill
  • 2 drawers
  • Cupboard under sink with waste bin behind door
  • Storage under central seating area
  • Overhead cupboards
  • Additional storage areas designed for  Microwave
  • Freezer
  • 12V fridge 130 L/34 US gal

Companionways

  • Laminated dark brown step

Forward Starboard cabin

  • Access through starboard passageway door • Standing headroom: 1.95m/6’5”
  • 12V overhead lighting
  • 2 X 12V headboard reading lights
  • “Semi – island” type berths with front and side access 2.0 m X 1.5 m/6’7” x 5’
  • 1 drawer and 2 storage lockers on front of bed • Lockers on both sides of bed
  • 1 Hanging locker
  • 1 Opening deck hatch with curtain
  • 1 Hull port with curtain
  • 1 Large one-way fixed window with curtain

Forward starboard head

  • Access from cabin door
  • 12 V lighting
  • Standing headroom: 1.95m/6’5”
  • Large electric quiet flush marine head with holding tank with gravity drain/ deck pump out (same holding tank for front and aft WC)
  • Fibreglass washbasin with hot/cold mixer tap, cupboards, mirrors
  • 1 Opening deck hatch with blind

Forward starboard independent shower

  • Access to shower stall from forward cabin door
  • Shower sump
  • Roomy separate shower stall with hot/cold water mixer tap
  • 1 Opening deck hatch with blind
  • Standing headroom: 1.95m/6’5”

Aft Starboard Cabin

  • Access through starboard passageway door • Standing headroom: 1.85m/6’1”
  • 12V overhead lighting
  • 2 headboard reading lights
  • “Semi – island” type berth with front and side access 2.0m X 1.5 m/6’7” X 5 ft
  • 1 Drawer and 2 lockers on front of bed
  • Lockers on both sides of berth
  • 1 Hanging locker
  • Access to emergency escape hatch
  • 1 opening deck hatch with blind
  • 1 hull port with curtain
  • 1 large one-way fixed window with curtain

Aft starboard head

  • Access from aft starboard cabin door
  • 12 V overhead lighting
  • Standing headroom: ± 1.95 m/ 6’5”
  • Large electric quiet flush head with holding tank with gravity drain/ deck pump out (same holding tank for front and aft WC)
  • Fibreglass washbasin with hot/cold mixer tap, lockers, mirrors
  • 1 opening deck hatch with blind

Aft starboard shower

  • Shower stall in same area as head but separated by a PMMA door
  • Standing headroom: 1.95 m/6’5” • 1 opening deck hatch with blind

Owner’s hull

The port hull is totally dedicated to the owner and includes:

  • Access from salon through sliding door in passageway
  • 12 V overhead lighting
  • 2 reading lights
  • “Semi – island” type berth with front and lateral access 2.0m X 1.5 m/6’7” X 5 ft
    • 1 drawer and 2 lockers on front of bed
    • 1 cabinet with 2 drawers on inboard side
    • Lockers on both sides of bed
  • 2 large hanging lockers
  • Access to emergency escape hatch
  • 4 opening deck hatches with blinds
  • 1 hull port with curtain
  • 1 large one-way window with curtain
  • Sofa
  • 1 vanity with shelves on the outboard side

Owner’s washroom

  • Access from owner’s cabin door
  • 12 V overhead lighting
  • Standing headroom: ± 1.95 m/6’5”
  • Large quiet flush electric marine head
  • Fibreglass washbasin with hot/cold mixer tap, lockers, mirrors
  • 1 Opening deck hatch with blind
  • 1 Opening hull port
  • 1 large one-way window with curtain

Forward port shower

  • Shower stall in same area as head but separated by a PMMA door
  • Deck hatch with blind
  • Standing headroom : 1.95 m/6’5”

Lagoon Options Chosen

  • MOSQUITO SCREENS IN THE SALON
  • SPECIAL LEATHER UPHOLSTERY (salon & settees)
  • Davits
  • LED navigation lights
  • 220V electrical circuit with 80Amp battery charger (NB getting a much larger aftermarket inverter/charger)
  • 2 additional service batteries 140Amp
  • Fans in cabins & salon
  • Leather bulkhead organizers in the cabins
  • Extra freshwater tanks aft port & aft stbd (total 330L / 87US Gal)
  • Waterproof loudspeakers in cockpit
  • Navigation Pack Raymarine 2013 I70
  • Genaker rig and pole
  • Pulpits with wooden seats
  • Cockpit fridge 12V 80L (21US Gal)
  • Sea water foot pump
  • Freshwater dock inlet
  • Aft cockpit floor in teak
  • Deck wash pump sea water / fresh water   (additional aftermarket back deck wash)
  • Two electrical genoa sheet winches 46.2STAEH
  • Freshwater foot pump
  • Dish drainer
  • DACRON SQUARE TOP MAINSAIL WITH SHORT MAST IN LIEU OF STANDARD
  • GENAKER RIG AND POLE
  • LAZY BAG WITH COVER NATURAL
  • AFT COCKPIT CUSHIONS CARBON BEIGE
  • AFT COCKPIT FLOOR IN TEAK
  • ELECTRIC WINCH FOR DAVITS 40.2STAEH
  • FOLDING CARBON GANGPLANK 2,60m / 8,53ft WITH COVER + 2 SOCKET
  • FOREDECK CUSHIONS CARBON BEIGE
  • HELM STATION CANVAS BIMINI AND BIMINI SIDES TAUPE
  • OUTBOARD ENGINE BRACKET ON PUSHPIT
  • SIDES AROUND AFT COCKPIT WITH WINDOWS HEATHER BEIGE TAUPE
  • SUNLOUNGER PADS HEATHER BEIGE CARBON BEIGE
  • 2 x 75 HP (Yanmar 4JH4TCE)
  • PAIR OF 3-BLADES FOLDING PROPELLERS FOR YANMAR 4JH4TCE (75HP)
  • 12V SOCKETS IN CABINS (x4)
  • GEL BATTERIES
  • ONAN GENSET 9,5Kva 220V / 50Hz + COCOON
  • HOLDING TANKS, DECK-SEA, FOR 3 CABIN VERSION
  • QUIET FLUSH ELECTRICAL TOILETS, FOR 3 CABIN VERSION
  • WATERMAKER 100L (26US Gal)/H DESSALATOR 12 / 220V (Cancels the Aft stbd extra freshwater tank)
  • INTERIOR WOOD IN ALPI TEAK WITH OAK FLOOR
  • CRUISAIR A/C 44000 BTU 220V FOR 3 CABIN VERSION
  • DOUBLE BERTH IN SALON PRIME BEIGE BRISE
  • FANS IN SALON AND CABINS
  • FREEZER 12V 110L / 29US Gal
  • UNDER BED SLATS FOR 3 CABIN VERSION
  • WASHING MACHINE 3kg / 6,5lbs 220V
  • AIS 650 RAYMARINE TRANSCEIVER WITH ANTENNA COUPLING
  • AUTOPILOT REMOTE SMARTCONTROL
  • E125W DISPLAY AT HELM STATION
    • EUROPE CARD
  • E125W DISPLAY AT NAV. STATION
    • REST OF THE WORLD CARD
  • RADAR HD DIGITAL RAYMARINE 18″ 48 NM 4 Kw
  • TV ANTENNA
  • VHF RAYMARINE 55 E WITH DSC
  • 2nd HANDSET AT HELM STATION FOR VHF RAYMARINE 55 E
  • DINGHY SET ULTRA LIGHT 340 IVORY WITH HONDA ENGINE BF20HP (Hypalon)
  • LAUNCHED, RIGGED, ANTIFOULING (4 dock lines, 6 fenders, diesel, anchor set) Les Sables d’Olonne
  • RECEPTION OF BOAT AT LES SABLES AND AUSTRALIAN REGISTRATION
  • EXPORTATION FEES



After Market Items

  • Gennaker (blue / white) – Incidence France – 69m2 – (tri-radial cut / stormlite 2.2 150g)
  • Galvanic Isolator (360W  115 / 230 V) – rated for lightening
  • Victron Phoenix Combi Charger / Invertor
  • Battery Monitoring (BMV 602)
  • Smart Charger for Alternators  – Alpha Pro 12 regulators x 2
  • Stick on solar panels on roof (HPFlex 100  12V – 100W) x 10
  • Victron MPPT Solar Panel Controller (150/70)
  • Additional 220V Power Points (220V) – vicsail supply for local fit
  • Underwater LED lights on Sterns  (Four  LEDS hybrid Serie 30i 9-32vDC  Midnight Blue)
  • Spreader Lights (LED under lower spreaders as deck lights)
  • Raymarine Fishfinder (DCM 30 )
  • Ground Plate for HF Radio
  • “TV in Saloon (37″”)  with C and Stereo Connectivity and TV in Owners Bedroom (22″)
  • WiFI Booster (Antenna Wi Fi WL510 plus router)
  • Home Cinema Bose Lifestyle V35 + Bluray DVD Player
  • 8 Man Liferaft (canister) – viking 8 person Rescu You
  • Fire Extinguishers (x 1 per cabin (5) / x 1 saloon / x 2 auto engine)
  • Foldable Mast Steps to 1 set of spreaders
  • Radar Reflector
  • Barometer and Clock – chrome
  • Safe (passport storage etc)
  • Tie downs for Dinghy
  • Jacklines and Jackline Attachment Points (jackstays)
  • 25Kg Rocna Anchor and 100m Chain
  • Stainless Handrails on outside of port and stbd transoms
  • Water inlet / outlet on stbd transom to provide fresh/salt water (similar to deck wash on bow)
  • Leather Cover for Salon Double berth conversion – 0855
  • Galleymate 2000 Gas BBQ
  • Victron LiFePO4 Batteries (Four 90AH) plus BMS,Li-Charge and Li-Load units and GX Colour Monitor
Advertisements

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
